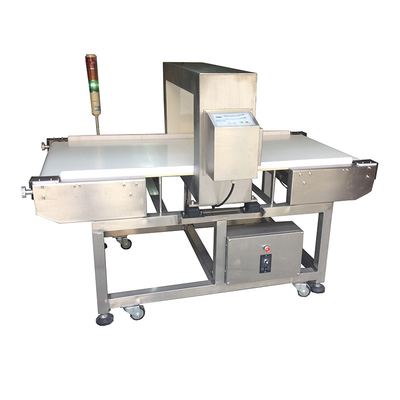

2022 High quality cheap price small conveyor belt metal detector machine with rejection for food industrial

Scope of application:
The conveyor type metal detector EJH-14 is mainly used for detecting the metal chips inside the sea-food , fishery, noodle, frozen food, , sugar, tea, pharmaceutical products etc.

Product characteristic:
1. )Stainless steel shell , anti-erosion and long life span .
2. )The conveyor belt is made of nonpoisonous material
3. )Strong transport drive, all the products below 25kg can be conveyed to be checked.
4. )Quick convey speed, it is specially suitable for pipeline operation.
5. )When sensor detect metal part, buzzer will sound and conveyor belt will stop.
6. )The performance of the belt conveyer is complied with the food sanitation standard, it can be used for transporting the unpacked food directly.
7. )Can match the pipeline operation or automatic control device.

Technical parameters:
1.) Inspection window size:
Normal height of inspection window(mm): 120
Normal width of inspection window(mm): 500
The measures of the inspection window which can be designed according customers requirement.
2. )Sensitivity: Diameter of 0.8 mm steel ball, weight of 1.2-1.5g Lead, copper and other globular metal at normal window size

Parameter:
Electrical source: 220V/380V 50Hz
Power : 120W/150W
Alarm: Audible and visual alarm, automatic stop
Normal Size(mm): 1740(L)X900(W)X1030(H)
Gross Weight: approx 175Kgs

Net Weight: Around 170kgs
