Parameter:
Product Name |

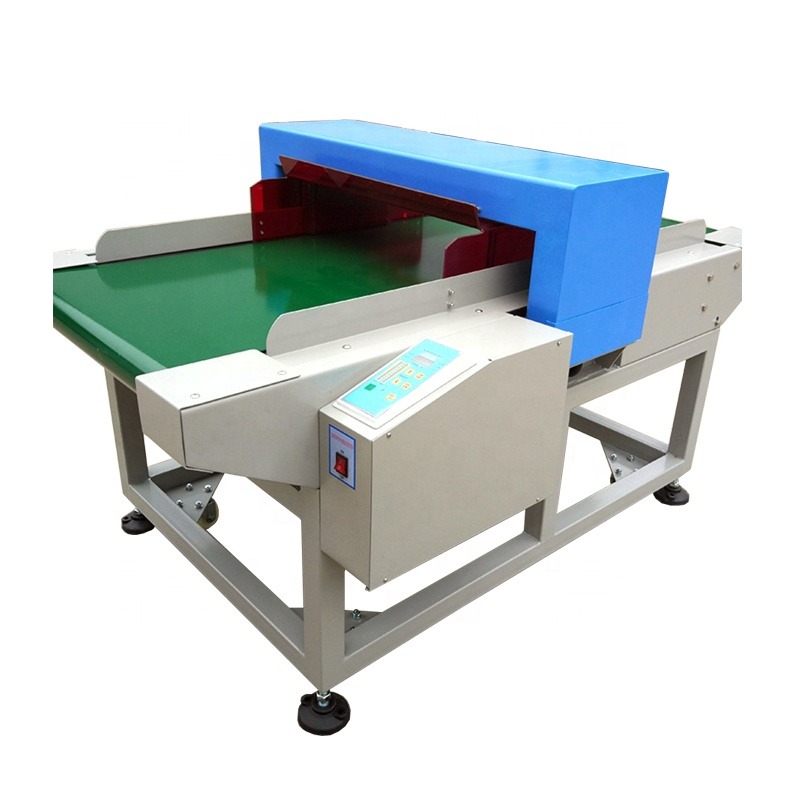

Textile Industrial Needle Detector Dairy Products Metal Detector |
|||
Model |
ZT-2003 |
|||
Specifications |
6010 |
6015 |
6020 |
6010 |
Voltage |
Ac220V 50-60Hz |
|||
Motor power |
60W |
60W |
90W |
90W |
Material of the whole machine |
Carbon steel, ABS engineering plastics |
|||
Effective detection width |
600mm |
|||
Effective detection height |
100mm |
120mm |
150mm |
200mm |
Check the accuracy(empty) |
Fe≥φ0.7mm |
Fe≥φ0.8mm |
Fe≥φ1.0mm |
Fe≥φ1.5mm |
Height of conveyor belt above ground |
680mm |
|||
Belt width |
560mm |
|||
Effective load |
10KG |
15KG |
20KG |
|
Conveying direction |
From left to right |
|||
Max. speed of conveyor belt |
Constant frequency, 26 m/min |
|||
Material of conveyor belt |
PVC conveyor belt for needle detector |
|||
Display and operation mode |
Control panel key input |
|||
Alarm mode |
When the broken needle or magnetic metal foreign body is detected, the automatic buzzer will give an alarm and the conveyor belt will stop automatically |
|||
Protection level |
IP54 |
|||
overall length |
1650mm |
|||
overall width |
1050mm |
|||
Machine height |
900mm |
920mm |
950mm |
1000mm |
Quick detail:
Apply self-developed patent technology.
Equipped with latest microchip, reliable with excellent performance.
Sensitive and anti-jamming.
Automatically digital signal processing through the whole process.
Easy operate, history data can be processed and saved automatically before system switched off.
Self-designed high-frequency power switch.
Integrated and optimized design for reducing components, replaced electronic system by computer control, lower malfunction.
Microcomputer controlled motor to extend working life.
Precise counter device.
Feature and Application:
1. High sensitivity and strong interference immunity.
2. Light structure and move conveniently.
3. Various of specifications of inspection window which can be chosen at will according to customers' needs
4. Quick conveying speed, applicable to pipeline operation.
5. Matches the pipeline operation or automatic control device.
Application:
Detector de Metales Conveyor Tunnel Metal Detector mainly used for detecting ferrous
metal that load or drop in raw materials and products in the field of toy costume, shoe making, chemical industry, leather, knitting etc. Clothes, textile, bra, baby products, shoes, socks, gloves, etc detection lost pin and scrap iron kind
of impurities in the products, ensure prduct without iron impurity pollution, supply reliable quality guarantee.
1. Zotai Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
2. Onsite Service:
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
3. Free technical training for visiting factories
4. 24-hour Online contact
5. Free software upgrades
6. Free information:
A.Product Instruction;
B.Product operation instruction/video;
C.Experiment Test (test application, test report)
7. Device Problem Handling:
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
Dongguan Zotai Instrument Technology Co., Ltd. specializes in rubber and plastic testing machine, metal detector, textile testing machine and shoe testing machine for more than 10 years. With advanced technology, excellent product quality and best customer service, the products are exported to more than 100 countries and regions have won praises from customers around the world.
We have a professional design team that can customize individual products according to customer requirements.
If you have any questions or concerns, the sales and after-sales service department will respond to you within 24 hours.
1.Are your company a trading one or a factory?
Factory + trade (integration), 10 years focusing on test instruments field, 8 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
Contactpersoon : | Zoe |
---|
